Computer Vision for Breast Conserving Surgery

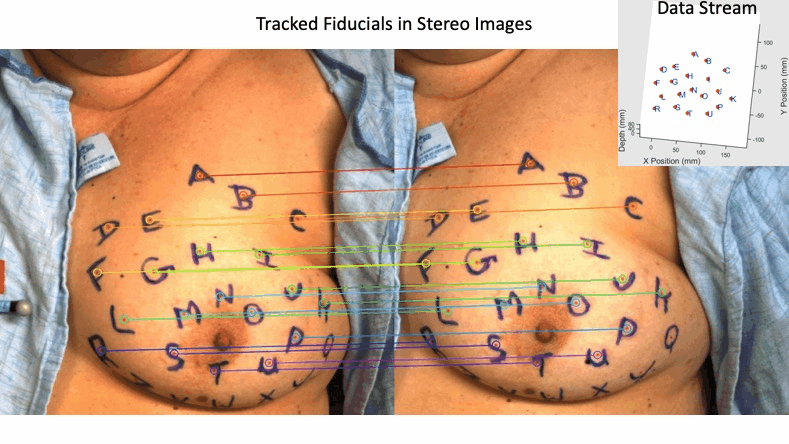

Character based fiducials can be used to track points on the breast surface. These surface points are incorporated to a four-panel guidance display that shows a surgeon where their tools are with respect to preoperative supine Magnetic Resonance (MR) Images, tracked ultrasound images, and a model view of the breast and tumor.
A surgeon can write on a patients skin with an indellible marker to create fiducials that are easily sterilized, can remain on the skin throughout surgery, and can be tracked to provide data to a continuously updating image guidance system.
When evaluated across 8 healthy volunteer breasts, an average of 85.6 ± 5.9% of visible fiducials were automatically detected and tracked, and 99.1 ± 1.1% of frames provided only true positive fiducial measurements, which indicates the algorithm achieves a data stream that can be used for reliable on-line registration. Tracking was robust to occlusions, displacements, and most shape distortions. This work-flow friendly data collection method provides highly accurate and precise three-dimensional surface data to drive an image guidance system for breast conserving surgery.
- W. L. Richey, J. S. Heiselman, M. J. Ringel, I. M. Meszoely, and M. I. Miga, "Soft tissue monitoring of the surgical field: detection and tracking of breast surface deformations," IEEE Transactions in Biomedical Engineering, 2023.
In 2018, we showed that phantom breast surface points could be automatically tracked using a stereo vision system.
- W.L. Richey, M. Luo, S. E. Goodale, L. W. Clements, I. M. Meszoely, and M. I. Miga, "A system for automatic monitoring of surgical instruments and dynamic, non-rigid surface deformations in breast cancer surgery," in Medical Imaging 2018: Image-Guided Procedures, Robotic Interventions, and Modeling, 2018, vol. 10576, p. 105761H: International Society for Optics and Photonics.

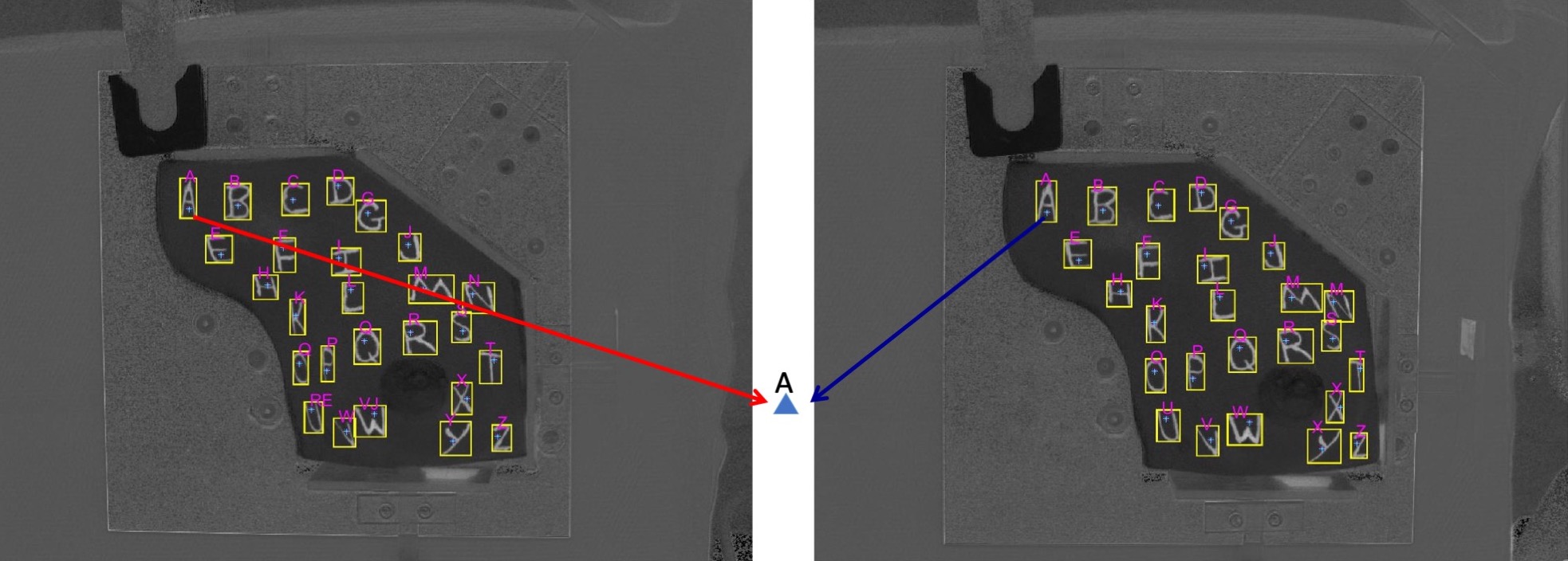

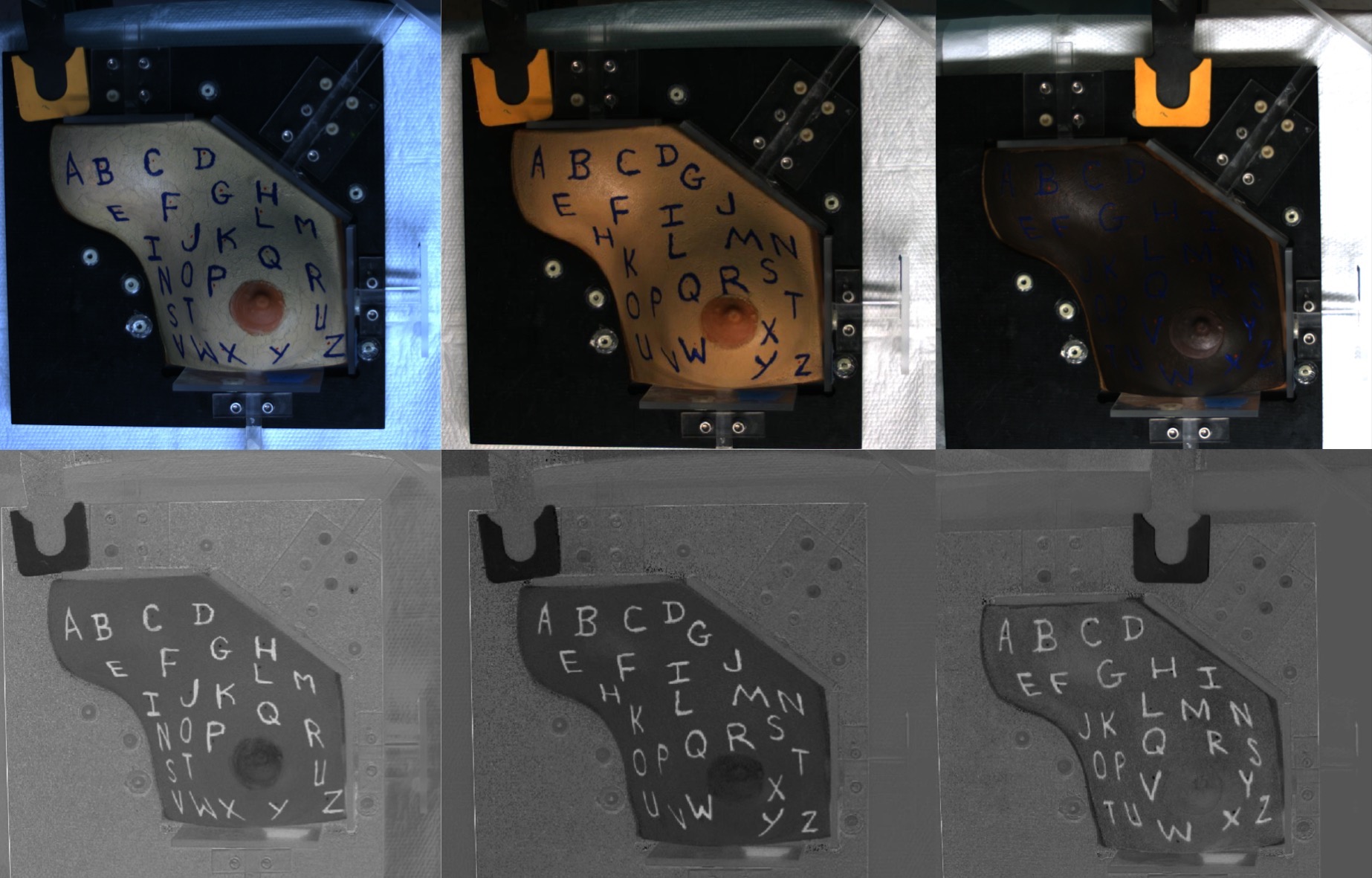

In 2020 we showed that a simple program can identify character fiducials with 89% accuracy using the MATLAB built in optical character recognition function, and an average of 81% of points can be accurately labeled and localized even across multiple skin tones. We also compared the accuracy of our stereo camera system to conventional optically tracked stylus points.
- W. L. Richey, J.S. Heiselman, M. Luo, I. M. Meszoely, and M. I. Miga, "Textual fiducial detection in breast conserving surgery for a near-real time image guidance system," in Medical Imaging 2020: Image-Guided Procedures, Robotic Interventions, and Modeling, 2020, vol. 11315, p. 113151L: International Society for Optics and Photonics.
